What is the Venturi Fertilizer Injectors?
A venturi is a device which creates a vacuum when fluid flows through it. The fluid which creates the vacuum is know as the motive fluid. The motive fluid for irrigation injectors is the irrigation water itself. Vacuum created by the venturi sucks fertilizer or chemical into motive water.
How to it work?
Our Venturi are water driven, ie they are driven by the pressure of the main irrigation pipeline. The energy to run these devices reduces the irrigation water pressure of the water line.
.jpg)

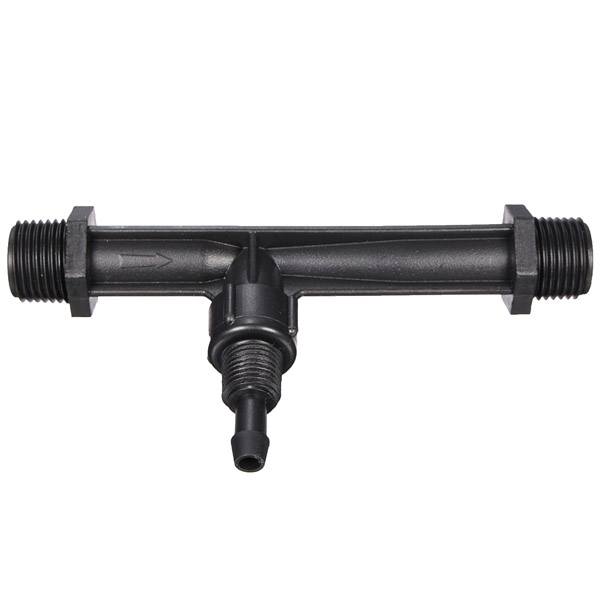

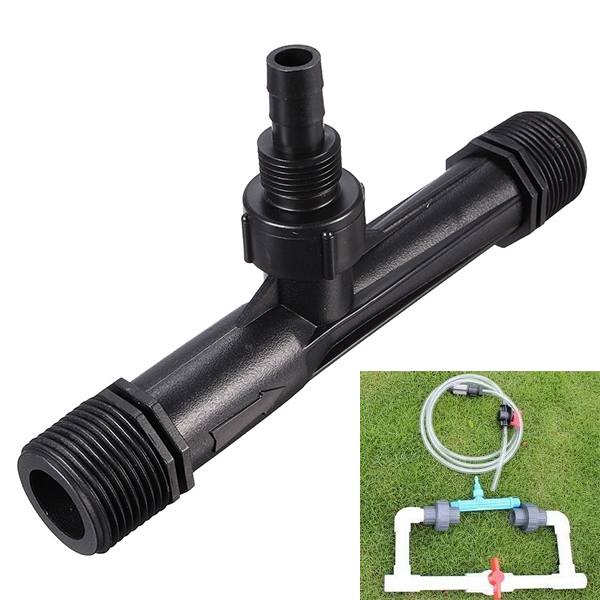

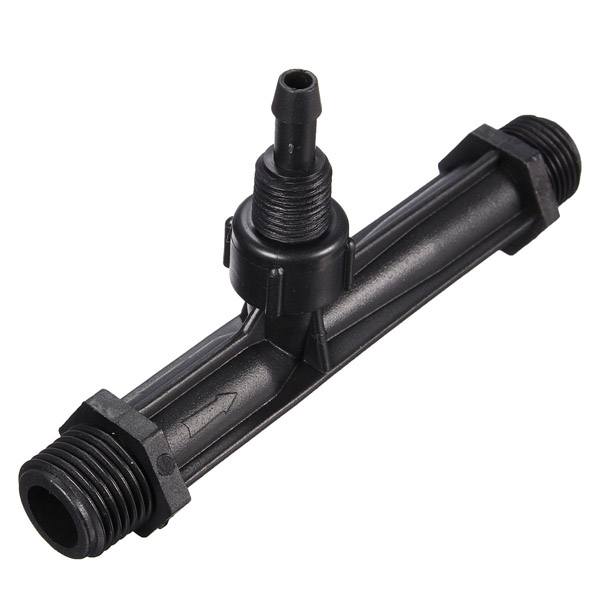

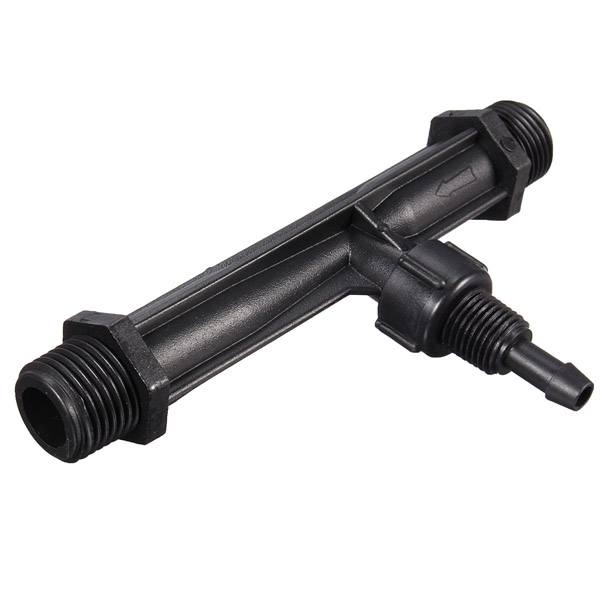

1/2 Inch Venturi Fertilizer Injectors Agriculture Irrigation TubeSpecification:Material: Plastic
Size: 140*75*30mm
Color: Black
Flow range: 0.29-0.81m³/h
Working Pressure: 0.7-9.5bar
Self-priming capability: 3-37L/h
Features:Made of engineering plastic
Excellent chemical resistance to most of the chemicals
Highly efficient and compact differential pressure injection device
Economical and low cost option
Available in 1/2" BSP inlet/outlet connection
Package include:1 X
Fertilizer Injector Tube
